HELP! Solar oven problems.

by Ho Yoon Yee
(Singapore, Bukit Batok)


My group is doing a solar oven for our graded assignment. So far we wasted three days making two useless prototypes that cooled down the water that we were supposed to heat up.
Requirements:
1) Prototype must be no bigger than 1m by 1m by 1m.
2) Prototype has to heat up 200ml of water in five minutes (preferably up to 60*C for a average grade)
3) Try to use recycled materials for prototype (we already spent a good sum of money on this thing)
General Questions:(if we ever get that far)
1) Where should we paint black: inside, outside or both?
2) Must our reflectors be at a 45 degree angle? Or what angle must it be at?
3) How do we airtight the whole thing but still be able to put in and then retrieve our beaker of water without taping, gluing etc shut the opening of the box?
The setup will be exposed to the sun at about 11-1pm for the actual test, but we have trial tests at 3-5pm every afternoon.

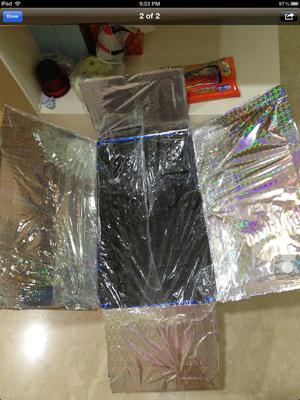

We do not have access to windows, hinges, fiberglass, wood or any fancy materials. I live in Singapore there aren’t many home improvement or hardware stores so I can’t find these stuff. Unused CDs are also quite hard to find. Well, we do have: (50x30x20) cm cardboard box, some black acrylic paint, cling wrap, not-so –shiny aluminum foil, shiny gift wrapper, and the sliver cardboard thing that cakes sit on when you buy them from the bakery. Temperatures on our hot days: 32*C-36*C
Please help us. We need to get this done by 23/03/13 or we will fail our practical graded assignment!
Thank You! :)


___________________________________________


Greetings,
Let us see if we can get you some help and advice for your project.
I do not have the time to respond with much helpful details at this moment since it is very late, but tomorrow I will be able to do so.
Let's see if anyone else can help at the moment.

Nathan
Admin.

Comments for HELP! Solar oven problems.

Average Rating starstarstarstarstar

Click here to add your own comments

Apr 04, 2013
Rating
starstarstarstarstar
A good resource.
by: Sharon Cousins (aka Grandma Solar)

Go to the Solar Cookers World Network on Facebook and post your questions and a link to your page that shows what you have tried so far. There are some very smart solar cooks there, from a variety of regions/climates. You will probably get the most help the fastest if you do this. Here is the link:

https://www.facebook.com/groups/scwnet/

Good luck! Solar cooking does work -- I have even done it in the Northern winter with snow on the ground!

Mar 22, 2013
Rating
starstarstarstarstar
No Black Paint
by: Jim La Joie

With respect to all:
Your cooker will work better if it shiny on the inside also. So no black paint. Make it all shiny, put your dark pot inside a cooking bag, you need no further glazing or air-tightness and you will do just fine.

Mar 22, 2013
Rating
starstarstarstarstar
Try some other models?
by: Nathan

Great to hear that you were able to improve on your model and your results!

Would it not be fun to also try some other simple models to see if you can get them to perform as well or better?
Maybe try the solar funnel cooker with a pot inside of a roasting/oven bag.
And a medium size parabolic cooker made of cardboard and aluminum would work great I think.

Just some thoughts and suggestions to see how well you could do on your own.

Mar 22, 2013
Rating
starstarstarstarstar
THANK YOU!!!!!!!!!!!!!
by: Ho Yoon Yee

Thanks for all your advice. We managed to raise the temperature of water to 44*C! :)

Mar 21, 2013
Rating
starstarstarstarstar
Making a solar cooker
by: Nathan

Just as Cal wrote, it would be best to paint the interior of the box black so that it absorbs more heat.
And it would be ideal for you to place your beaker of water into a dark colored pot or pan (with a lid) so that the dark pan can absorb and hold more of the heat.

In order to have good insulation inside of your solar box cooker you would need to fit another smaller box inside of the bigger box and then you you can stuff paper, cardboard, cloth etc. into the gap between the two boxes and this will give you better insulation to hold more of the heat in.

...The plastic on your reflector panels might be inhibiting the reflecting ability of your reflector panels.

...And the lid on your cooker made of plastic wrap is probably allowing too much heat to escape.
A glass window piece should hold in more heat, but it is not too much more efficient than plastic and you might have difficulty finding a glass pane, and you have to be careful not to break it with the heat.

You might also consider this kind of a solar cooker for your project.
Simple Solar Cooker
It is quite effective and if done right can cook and heat up most anything you want. It is also inexpensive.

A very effective solar panel cooker that has been used all over the world is what is known as a funnel style cooker.
On this page you can find different solar panel cooker designs that are very effective
build a solar cooker

Parabolic cookers are your most efficient at concentrating the sun, you might consider one of these made with a used, discarded Television satellite dish, or form your own parabola using poster board and reflective tape or aluminum on it.

Hope this is helpful

Mar 21, 2013
Rating
starstarstarstarstar
Solar oven questions
by: Cal Griggs

Use black paint inside your cooker. Set your panels at about 67 degrees. Put your container of water inside a plastic oven bag and tie the end. And above all, use a black colored pan or vessel for your container.

3-5 PM is not the ideal time for tests. Try to do it earlier in the day. Like maybe at lunchtime.

Mar 21, 2013
Rating
starstarstarstarstar
*___*
by: Yumi Sun

Hi I'm Yoon Yee's team-mate on the solar cooker project. We are extremely happy that you responded but can you please try to give us positive and constructive feedback. This is our assignment and our third trial has just failed. Can you please give us any, ANY form of advice so that we can at least improvise on our prototypes.This assignment counts for 10% of our total marks. We cannot afford to screw this up.

OK, so the only change we made to the prototype you saw was to replace some of he gift wrappers with the shiny cardboard that cakes sit on when you buy them at the bakery. The interior of the box warmed up but the water did not even heat up to forty degrees Celsius.

Once again,we are very happy that you replied and we are looking to see your advice.We are seriously depending on your advice.
