Fresnel Lens Solar grill

by Bruce Joseph
(Tucson, AZ USA)

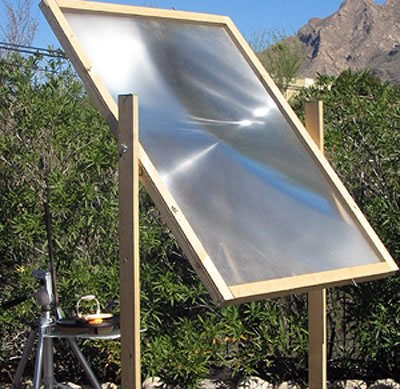

Bruce's Fresnel Lens Grill

Bruce's Fresnel Lens Grill

I purchased a 30" x 40" linear Fresnel lens, and built a frame for it out of 2" x 2" lumber. This frame is mounted on a wooden stand which allows me to tilt the lens to align it with the sun, and raise it about 60" off of the ground.

The lens has a 42" focal length, and I'm currently cooking on a cast iron skillet placed on a modified heavy-duty camera tripod.

When I built the cooker, my goal was to boil a quart of water in less than 30 minutes. I heat water in a 2" x 22" copper pipe, and can boil over a quart in about 20 minutes.

After learning that I could boil water, I decided to try cooking food.

The Fresnel lens can get VERY hot (I would guess 700+ F) so it's very easy to burn food with it. My current technique is to place food on the cast iron skillet, then put a bacon press over that. (Similar to a panini press.) Heating the bacon press instead of directly heating the food, spreads the heat out and minimizes burning. I can cook a hamburger, a few hot dogs, a grilled cheese sandwich and other foods in about 5 minutes.

The design is a work in progress, and I'm looking to replace the lens stand with a table.

I plan to build a parabolic cooker and a box cooker later this year.





_________________________________________________

Hi Bruce,
Nice to hear from you again...

And, very nice job on your write up and description of your Fresnel lens cooker.

I, and other site visitors, appreciate very much your descriptions of how you built it and especially how you have used it.

...very good submission, thank you for sharing with us.

Nathan
Admin.

Comments for Fresnel Lens Solar grill

Average Rating starstarstarstarstar

Click here to add your own comments

Rating
starstarstarstarstar
DOUBTS NEW
by: gayathti

HI
THIS IS GAYATHRI

I HAVE BEEN WORKING IN THIS PROJECT. I HAVE SOME DOUBTS REGARDING THE FRESNEL SOLAR GRILL

1. AT WHAT HIGHT SHOULD THE LENS BE PLACED
2.HOW DO YOU LOCATE THE FOCUS

PLS ANSWER THEM SOON
EMAIL - gayu.devi.akka@gmail.com

Rating
starstarstarstarstar
DOUBTS NEW
by: gayathti

HI
THIS IS GAYATHRI

I HAVE BEEN WORKING IN THIS PROJECT. I HAVE SOME DOUBTS REGARDING THE FRESNEL SOLAR GRILL

1. AT WHAT HIGHT SHOULD THE LENS BE PLACED
2.HOW DO YOU LOCATE THE FOCUS

PLS ANSWER THEM SOON

Rating
starstarstarstarstar
i want old tv lens for practical
by: Ramesh

i am interested in developing solar cooker in India
if any body is interested
give me quotation for it
or only lens quotation
email:vithaniramesh@yahoo.co.in

Rating
starstarstarstarstar
Fresnel Solar Grill
by: N P Singh

Greetings,
I am very much impressed to see design of Grill.
Kindly let me know the dimension of Solar fresnel Lens and Lens supplier with approximate cost.
Pl send your reply on:
npsdhillon@gmail.com
Thanx in advance

Rating
starstarstarstarstar
Bottom Heating Fresnel Cooker
by: Bruce

I built a Fresnel cooker with a mirror that heated from the bottom - more like a conventional stove top. Unfortunately, I bought a Solar Burner parabolic from Solar Cooker at Cantinawest shortly after I built it. The Solar Burner worked so well that the mirror-Fresnel never got much use after that.

Rating
starstarstarstarstar
You're doing it wrong
by: Anonymous

What people fail to take into account is that cooking is done traditionally with the heat coming from underneath.

You need to bounce all that light off of a mirror and reflect it onto the bottom of a sheet of metal.

Essentially you'll have a flat grill like a short order cook uses.

This will dissipate the heat across a larger surface, creating a hotspot and a varying gradient of heat all around it. This will also allow you to use your cookware in a traditional fashion, with the heat coming from underneath. You'll have one spot that is always on "High Heat" and other places where you should be able to slow cook.

As it is, having sunlight directly hitting the pan from either top or bottom leaves you with no ability to control the heat, and the very real danger of reflecting that intense light onto yourself. But you don't want light, you just want the heat.

FLAT GRILL. For the win.

Rating
starstarstarstarstar
to folks wondering about two lenses
by: Anonymous

You could easily use two lenses at one time with a mirror. Set up one lens like normal, then set second lens up using a mirror to aim it. You get two lenses with full solar input, side by side, but aimed at the same cooking surface.

Rating
starstarstarstarstar
doubling lenses
by: Anonymous

Doubling the lenses on top of each other would definitely not increase the temperature, and would probably be more of an inconvenience when trying to find the focal point of the beam. The only way to really use two lenses would be able to use them separately but focus their beam on the same point. To do this however you would need to angle them beside each other in a way so that the lens is not perpendicular to the incoming sunlight, which would reduce their effectiveness. Basically you would probably have more focused light to work with but each beam wouldn't be as hot or as easy to focus individually.

If you could manage to get the two beams to focus on the same point, it would probably maintain a high temperature better because of the increase in overall solar energy. But at the same time you would likely not see as high of a maximum temperature on the focal point.

Rating
starstarstarstarstar
Doubling the lenses
by: Anonymous

I don't think so. I think that you would still be gathering and concentrating the same amount of sunlight, so I don't see any increase in energy input.

Rating
starstarstarstarstar
Doubling up the lenses
by: Anonymous

I wonder if you placed two lenses on top of each other,will their heat intensity double?

Rating
starstarstarstarstar
mr.E
by: Anonymous

I just found an older flat screen TV on the side of the road with a sign on it FREE. 1 hr later I had my cooking stand made and made mac and cheese in 20 min, my stand was real easy to make, but the frame was real easy 4 2X4 cut at 45% then put the 2X4s with the 4" side up on the table saw with the blade up 1/12 rip and screw it all together. 

Rating
starstarstarstarstar
The ideal fresnel lens for a box cooker?
by: Stevek

I retrieved a fresnel lens from a discarded large screen TV yesterday at a recycling depot for free. It's a 26" x 48" size, and is frosted on one side. At first I was disappointed about the frosting, because it diffuses the sun's rays a bit. But after testing it out I am actually pleased. Apart from the bragging value, there's no benefit in making a solar cooker from a clear fresnel lens that could easily vaporize your food. The frosted type focuses to an area about 6" diameter which is perfect for cooking. It still gets hot enough to burn cardboard but it takes a minute or two. I intend to make a solar box cooker with the lens as the lid and with angled interior sides, a bit like the SOS cooker in shape, so that the cooking area is about 12" round. I will try to get the lens to focus on this area, making it a more user friendly cooker. I will post some info on how it turns out.

Rating
starstarstarstarstar
Heating a room
by: Anonymous

I want to know how can I use this approach to warm a room.

Rating
starstarstarstarstar
Frame design
by: Archimedes

Go to YouTube and search "fencekid free fresnel frame" for an instructional video on how to make your own frame.

Rating
starstarstarstarstar
Not scammers - just greedy
by: Anonymous

There are a lot of sellers who sell lenses in wooden frames to uneducated buyers for high prices. Projection TVs are trashed everyday everywhere. So stop the nonsense! There is no justification to charge $299 for a Fresnel lens just because you make proprietary claims. Look at their eBay auction descriptions. They are way overboard with the marketing tricks. You can buy and sell a lens for whatever price you want. For the rest of the un-offended population, we'll recycle old projection TV parts for Free.

Rating
starstarstarstarstar
What about?
by: Julie

Have you tried putting two cast iron skillets, open sides together?

I'd like to hitch one of these to a conventional stove somehow - using something cast iron as the heating element. I wonder how hot the box would get.

Rating
starstarstarstarstar
Fresnel lens plans, please
by: Chris

If you wold be so kind, please forward any plans for this device yo may have; I have a 41"X 31" Fresnel, and would like to build something like you have.

Chris
My e-mail; earnestlksd@hotmail.com

Rating
starstarstarstarstar
Free Fresnel Lens
by: BeholdersEye

Hey all, there are people that throw away their old back-projection tvs, I found two tvs on the curb. All you need is a 1/4 in hex drive to undo the screws holding the tv screen or Fresnel lens. Yes, that's why they make this large fresnel lens, plus there are three glass lens, if you want them, in the back. So do not turn down a gifted horse in the mouth, strip and reuse those old back-projection tvs.

Rating
starstarstarstarstar
Re: Fresnel lens SCAMMERS?!?!!! r
by: Bruce

I know several people who don't have easy access to Fresnel lenses who would pay a reasonable price for them.

Can you post a link to your website here?

I have had offers to build similar solar cookers for people, but tell them that they have to provide the Fresnel lens.

I got mine online several years ago, and it was well worth what I paid for it.

Bruce

Rating
starstarstarstarstar
Fresnel Lens SCAMMERS?!?!!!
by: Anonymous

LOL, Ummmm, that's no secret, it's mentioned several times on MANY solar cooking sites. And I, as well as others on these sites sell fresnel lens and don't consider myself or anyone else who sells them "scammers"! You can find lawnmowers on Craigslist, that doesn't make Sears or Home Depot "scammers"! HOWever, thanks for the tip. Also, stop paying for firewood, most of those old tv cabinets are made of wood too...

Rating
starstarstarstarstar
Stop Fresnel Money Scammers
by: Anonymous

Stop paying top dollar for "professional" Fresnel Lenses. How silly. Search Craigslist for "projection TV" or "big screen television" and you can get these things for free. The screen of an old projection TV has a Fresnel Lens in it. Just avoid the HDTV types. Go for the oldest (pre-2000) models. Most people have no idea. Free knowledge. Free energy. Free FRESNEL LENSES!!

Rating
starstarstarstarstar
RE: 2" x 22" copper pipe for boiling water
by: Anonymous

I used to use a 2" x 22" copper pipe, exterior painted black, and capped at the bottom, to boil water. With my new setup (not pictured) I use a black 32 oz. stainless steel water bottle.

Sorry, I don't have video, but I have some images here: http://bejoseph.com/solar-photos.

Rating
starstarstarstarstar
2" x 22" copper pipe for boiling water
by: santiago

I would like to know more on this device. How it's made and how it works. A video if at all possible. Thanks

Rating
starstarstarstarstar
Another mirror?
by: Paul

Oh Oh Ohhhhhhh!, I'm sorry, is that what you meant by using a regular mirror? Yes, by all means you can reflect using a FRESNEL LENS and a regular mirror! I thought you meant cooking with a regular mirror alone, instead of a parabolic mirror...my error.

Rating
starstarstarstarstar
Another mirror?
by: Anonymous

No, I'm afraid that won't work, sorry. There's no real concentration of rays or heat with a flat mirror. You see, a parabolic mirror (shape) creates a focal point of 500+ degrees, whereas a flat mirror will barely raise the outdoor temperature. I hope this helped answer your question. If you email me, I would be happy to send you a diagram showing you how it works...Thanks,Paul

Rating
starstarstarstarstar
Another mirror?
by:

Paul

Would it be possible to use another regular mirror to reflect the heat up to the bottom of the frying pan?

Rating
starstarstarstarstar
I have several Fresnel lens for sale...
by: Paul

I also sell Fresnel lens if anyone is interested. They make a great solar cooking tool not to mention a ton of fun to play with (an adult that never grew up), although they are to be taken serious and are not a toy! I also have parabolic mirrors and am now working on a larger parabolic cooker that folds up for easy storage and transportation. Great for camping too! Anyway, I can be reached at lennon631@gmail.com for buying Fresnel lens Thanks for reading, Paul

Rating
starstarstarstarstar
Finding Fresnel Lenses
by: Bruce

I got the lens from a fellow solar cooker in the mid-west. He sold it to me for $60, including shipping. The lens is 30" x 40" and that seems to be a decent size for solar cooking. I wouldn't go much smaller than that the size of the lens plays a big part in how well it can cook.

There is a company in Florida called GreePowerScience that sells large solar stuff, including Fresnel lenses. You can ofter find their products on E-Bay.

Craig's List is another good place to check for Fresnel lenses.

Rating
starstarstarstarstar
Where did you get that lense?
by: Solar cooker in Idaho



Thanks for experimenting with solar cooking. It is a great way to cook and conserve our planet's resources.
I have been looking for a source for a lense like the one in your photo, to experiment with in regards to solar cooking. Do you have information on where you got it and the approximate cost. I have looked at some websites with lenses. Mostly they were too small and I have no idea which type would be most effective for cooking. Any information would be helpful.
Thanks so much.

Rating
starstarstarstarstar
supply fresnel concentrated lens for solar
by: frank zhou

Dear Sirs,

We are a manufacturer of china and produce the fresnel concentrated lens.
Now it's glad to have a business relationship with you for these items. if any requestion for
these products, please kindly contact us , we are very interesting cooperation with you on this line.

best ergards

From: Frank Zhou
HangZhou Shili enterprise co.ltd.
HangZhou, China
E-mail: frankhz@msn.com
tel: 0086-571-85450981
